Sonicor Industrial Benchtop Cleaners

Previous Product | Next Product

$5,997.00

BCD-10

Product Description

Proudly made in the USA!

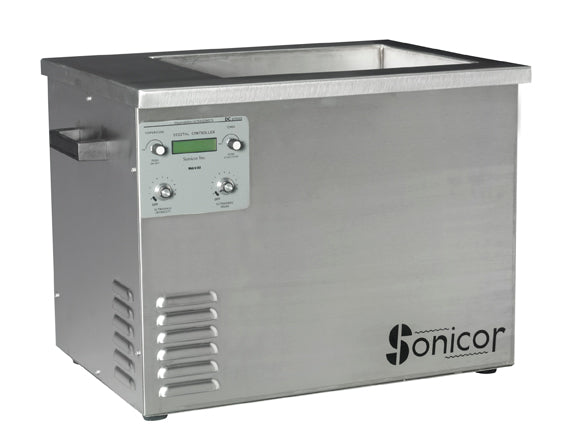

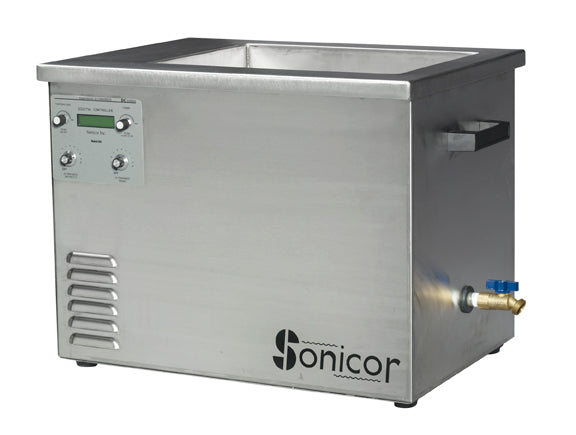

Sonicor Industrial Benchtop Cleaners are all-in-one, self contained units. Each Sonicor BC series unit features the exclusive BandScanner sweep frequency power supply, and a heavy duty stainless steel tank in one cabinet.

Three sizes are offered:

5 gallons; Tank I.D. 12" x 10" x 10"
7 gallons; Tank I.D. 14" x 10" x 12"
10 gallons; Tank I.D. 16" x 12" x 12"

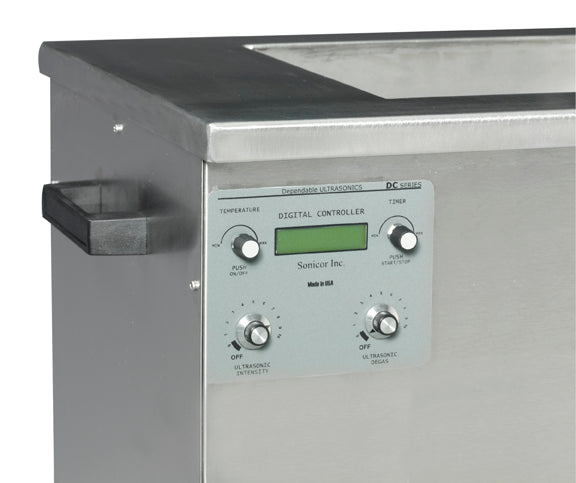

Digital Controls

User programmable microprocessor controlled
60 degrees – 180 degrees F variable temp. control thermostat with display
0-90 minute Ultrasonic cycle timer with digital display

Features common to all models:

All stainless tank fabrication
Drain valve
Ultrasonic intensity control
Variable pulse/degas control
Stainless steel lift-off tank cover
Cabinet handles
Ultrasonic cycle timer
Temperature control system

Shipping

Units shipped on a 48X40 skid/Pallet

BCD-5 65LBS 30X20X20
BCD-7 75LBS 30X20X20
BCD-10 82LBS 30X20X20

*Note: All Sonicor Benchtop Industrial Systems are made to order. Delivery is typically 4 weeks ARO.

Accessories:

Stainless steel parts basket

Tank ID	12″x 10″x 10″	14″x 10″x 12″	16″x 12″x 12″
Capacity	5 gallons	7 gallons	10 gallons
Ultrasonic Power:
RMS Watts	400	600	900
Peak Watts	565	850	1275
Frequency	40KHz	40KHz	40KHz
Heat Watts	500	800	1200
Input Voltage	120	120	120
Input Current	8 amps	12 amps	18 amps
Tank Drain	1/2″	1/2″	1/2″
Tank Material	14 ga 316L SS	14 ga 316L SS	14 ga 316L SS
Cabinet	304 Stainless	304 Stainless	304 Stainless
Cabinet O.D.	20″X 16″X 17″	22″X 16″X 19″	24″X 18″X 19″
Lift-off Cover	C-305	C-406	C-605

Download Manual (Word docx format)
