Product Description

xtra robust and xtra cleaning performance for heavy-duty applications

  • Mobile single-tank devices in 8 sizes
  • 25/45 kHz multi-frequency technology for cleaning stubborn soils and sensitive surfaces with one device
  • Switchable Dynamic-, Pulse- and Sweep-functions for more ultrasonic performance
  • Long-lasting, robust devices with tanks made of special stainless steel
  • Easy and clear operation, protected against spraying water

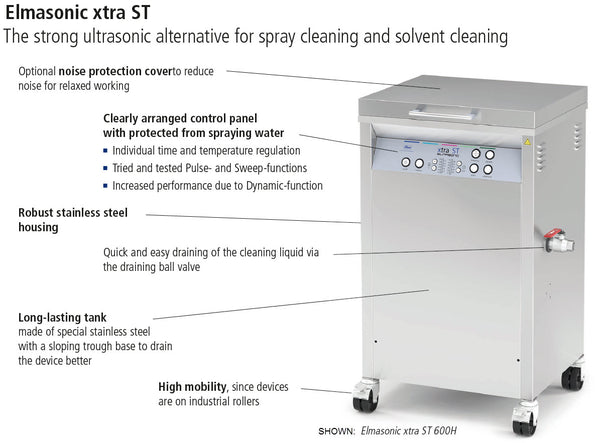

Elmasonic xtra ST floor-mounted ultrasonic devices are designed for use in a production environment, workshops and servicing. The wide range of features makes it easy and effective to work with these devices.

You can easily remove even stubborn contaminants, like polishing pastes, at 25 kHz. At 45 kHz, you can gently clean and degrease sensitive surface materials.

Using the switchable Sweep-, Pulse- and Dynamic-functions, you can achieve even more effective cleaning results. All functions and cleaning parameters like time and heating preselection and ultrasonic frequency are arranged user-friendly on the control panel on the front of the device where users can set and monitor them at a glance.

Elmasonic xtra ST devices are rated for continuous operation under the highest operational demands. The tanks are made of special stainless steel, which makes them robust with a long service life. In single-shift operation, they are guaranteed a warranty period of three years.

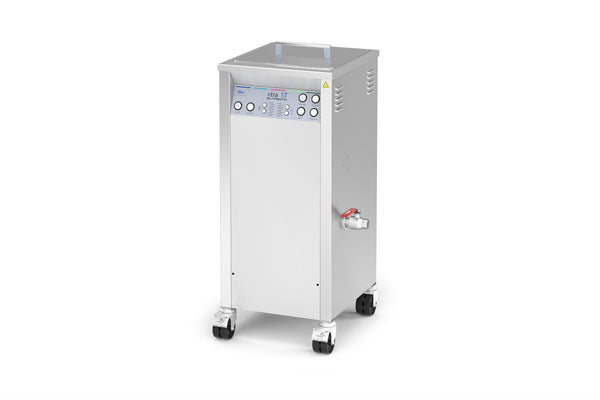

  xtra ST 500H
Ultrasonic frequency (kHz) 25/45
Tank labour capacity (l)
Max. tank capacity (l)
42.0
50.0
Ultrasonic power effective - Normal,Pulse (W) 480
Ultrasonic power effective - Dynamic (W) 540 / 600
Heating power (W) 1400
Unit external dimensions W/D/H (mm) 500 / 550 / 936
Tank internal dimensions W/D/H (mm) 300 / 300 / 500
Max. basket loading (kg) 12.0
Basket internal dimensions W/D/H (mm) 255 / 230 / 370
Weight (kg) 54.0
